Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage

Comentarios de cliente
hemos cooperado con JINCHENG AEROSOL VALVE durante más de 5 años, la calidad es excelente, las comunicaciones siempre son rápidas. si se les dice algún problema, lo arreglarán rápidamente a toda satisfacción.

—— ARTEM

Como minorista en la industria de válvulas de aerosol, hemos trabajado con JINCHENG durante muchos años. ¿Por qué elegimos JINCHENG por varias razones diferentes? En primer lugar, la calidad del producto es perfecta. Sus productos son novedosos en diseño y únicos en punto de venta. Especialmente indicado para el mercado europeo. Cada vez siempre nos dan buenos consejos y diseño.

—— Daniel

Estoy en línea para chatear ahora

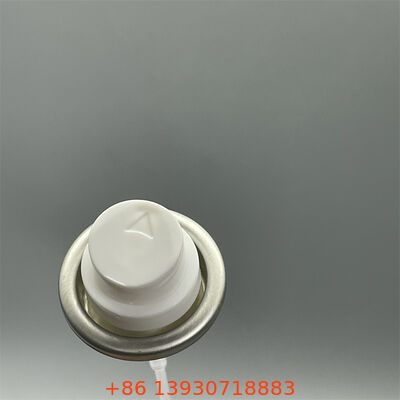

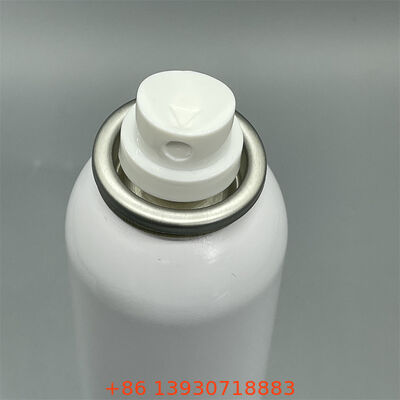

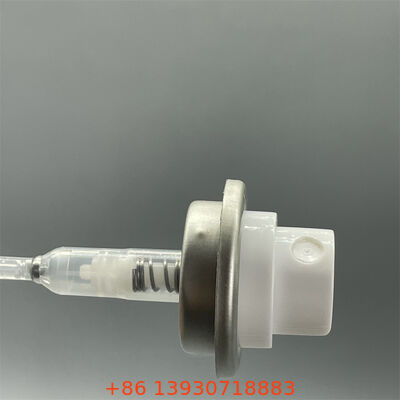

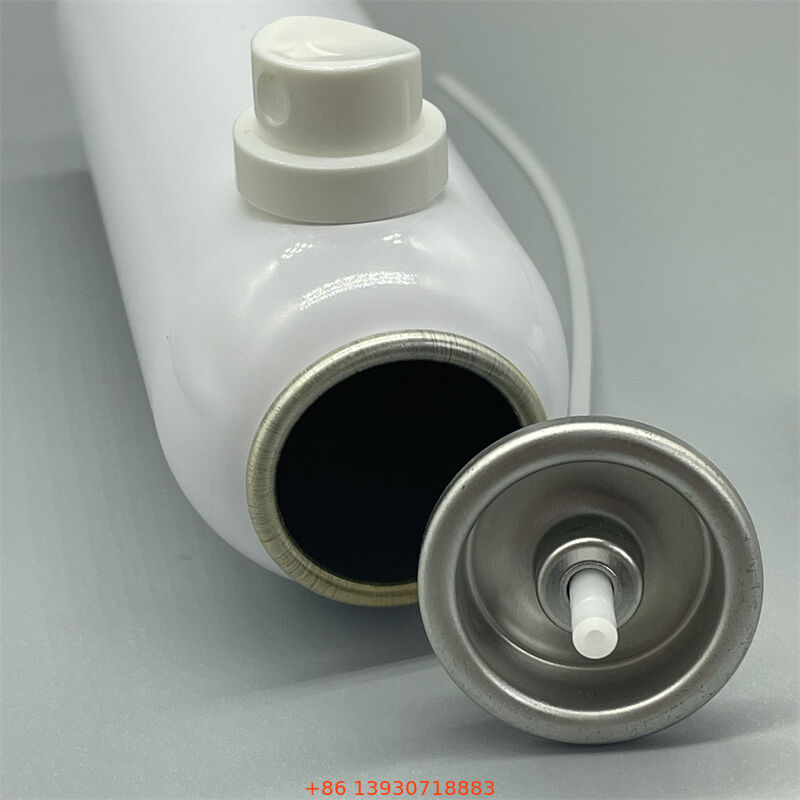

Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage

Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage
Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage

Ampliación de imagen :  Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: FUTURE
Certificación: ISO 9001
Número de modelo: BOMBA DE NIEBLA DE 0.15CC
Pago y Envío Términos:
Cantidad de orden mínima: 100.000 piezas
Precio: Negociable
Detalles de empaquetado: Caja de cartón
Tiempo de entrega: 10-15 días
Condiciones de pago: LC, D/A, D/P, T/T, Unión Occidental
Capacidad de la fuente: 10.000.000 juegos por mes

Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage

descripción
NOMBRE:: Bomba de pulverización Color:: Laca simple/transparente/laca dorada
Destacar:: Bomba de niebla fina de 0,15 cc, tecnología de atomización uniforme, control de pulverización de pre Material:: Aluminio/aluminio
Resaltar:

Precision 0.15cc Output

,

Ultra-Fine Mist Spray

,

Uniform Spray Distribution

Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage

Product Overview

The 0.15cc precision mist pump aerosol head is designed to deliver a consistent, ultra-fine spray for a wide range of liquid formulations. Ideal for perfumes, facial mists, toners, and personal care products, it ensures even distribution while minimizing product waste.

Engineered for compatibility with standard 1-inch aerosol systems, this pump integrates seamlessly with various packaging formats. Its optimized nozzle and actuator design provide smooth, low-effort operation, allowing for precise and controlled dispensing.

Manufactured using high-quality, corrosion-resistant materials, the pump offers excellent sealing performance to prevent leakage, contamination, and evaporation helping maintain product integrity throughout its lifecycle.

Key Features

  • Ultra-Fine Mist Output – Ensures smooth, even spray coverage
  • Reliable Sealing Performance – Protects against leaks and contamination
  • Durable Construction – Corrosion-resistant materials for long-lasting use
  • Wide Compatibility – Suitable for cosmetics, personal care, and liquid products
  • User-Friendly Design – Easy, low-force actuation for comfortable use
  • Customizable Components – Flexible configurations to meet packaging needs

Product Specifications


Attribute Value
Product Name Mist Spray Pump
Standard Size 1 inch (25.4mm ± 0.15mm)
Material Tinplate / Aluminum
Dip Tube Length Customizable to container height
Finish Options Plain / Clear Lacquer / Gold Lacquer
Inner Opening Diameter 25.4 ± 0.07mm
Outer Opening Diameter 31.2 ± 0.1mm
Inner Gasket Material Buna / Neoprene / Butyl
Dip Tube Material Polyethylene


Technical Parameters

Component Material Options / Specifications
Mounting Cup Tinplate With or without dimples

Aluminum Gold lacquer / Microflex finish
Outer Gasket Buna
Inner Gasket Buna / Neoprene / Butyl
Stem Nylon 1×0.46mm, 1×0.51mm, 2×0.51mm, 2×0.61mm, 4×0.61mm
Spring Stainless Steel
Housing Nylon Φ4.3mm (Spray Area: 14.52mm²)
VPH Spray Area 6.7mm²
Steel Ball Stainless Steel Φ3.5mm


Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage 0

Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage 1

Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage 2

Precision 0.15cc Mist Pump Aerosol Head for Smooth, Even Spray Coverage 3

Frequently Asked Questions (FAQ)

Q: Is the pump easy to clean?
A: Yes, the simplified internal structure allows for easy cleaning and maintenance.


Q: What is the service life of the pump?
A: It is designed for long-term use under normal conditions, depending on usage frequency and formulation compatibility.


Q: Can it be customized for different containers?
A: Yes, certain components can be tailored to meet specific container requirements.


Q: Will it affect the fragrance or formulation?
A: No, the materials are designed to remain neutral and preserve the original formulation quality.
